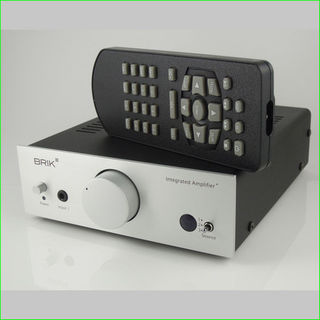

The Brik Audio integrated amplifier features a special circuit layout, which includes the preamplifier and power amplifier, and is designed to eliminate excess connections and the resulting distortions.
This compact amplifier provides plenty of power and can drive a wide range of speakers. It is a high quality product ensuring a clear, rich and powerful audio experience.

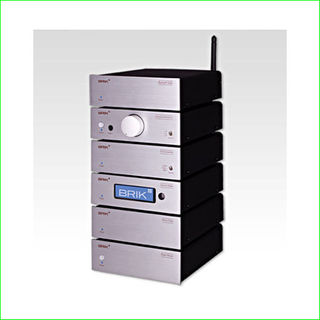

You can use this module with any of the other Brik Audio modules to build your personalised audio system or just use it on its own with a set of speakers and with your music player plugged into the 3.5mm front panel socket or the inputs at the rear of the unit.
Features
Features:-
- Compact size.
- Large output terminals for bare wire or banana plugs connections.
- Three input options selected with the front panel switch.
- High quality presentation with silver front panel with black body.
- Remote control for volume adjustment.
Specifications
Specifications:-
- Size: 140mm W x 48mm H x 160mm D.
- Inputs: 2 x RCA (rear), 1 x 3.5mm (front).
- Speaker Terminals: Bare wire and Banana Plug compatible.
- Power Output: >20 W (1kHz THD 0.5%)
- Load Impedance 4OHM: >35W (THD 10% Max Output)
- Distortion: <0.5% (1kHz 1W / 4 OHM 20Hz ~ 20kHz)
- Input Impedance: 20K OHM
- Input selector on front panel
Contents
What's in the box:-
- 1 x Brik Audio Integrated Amplifier module with silver fascia and black case.
- 1 x Power Supply.
- 1 x Remote Control.
- 1 x Instruction Manual.
